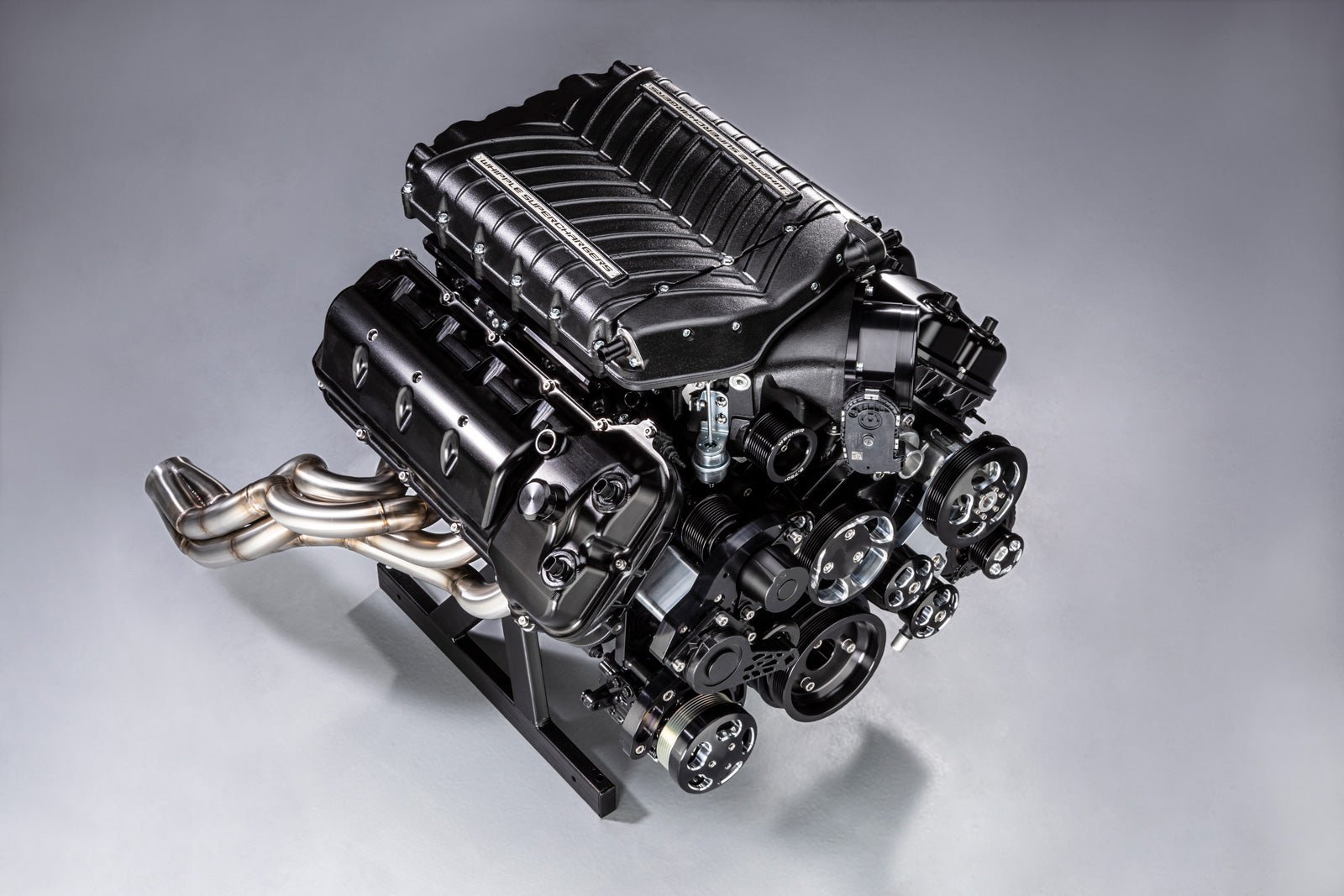

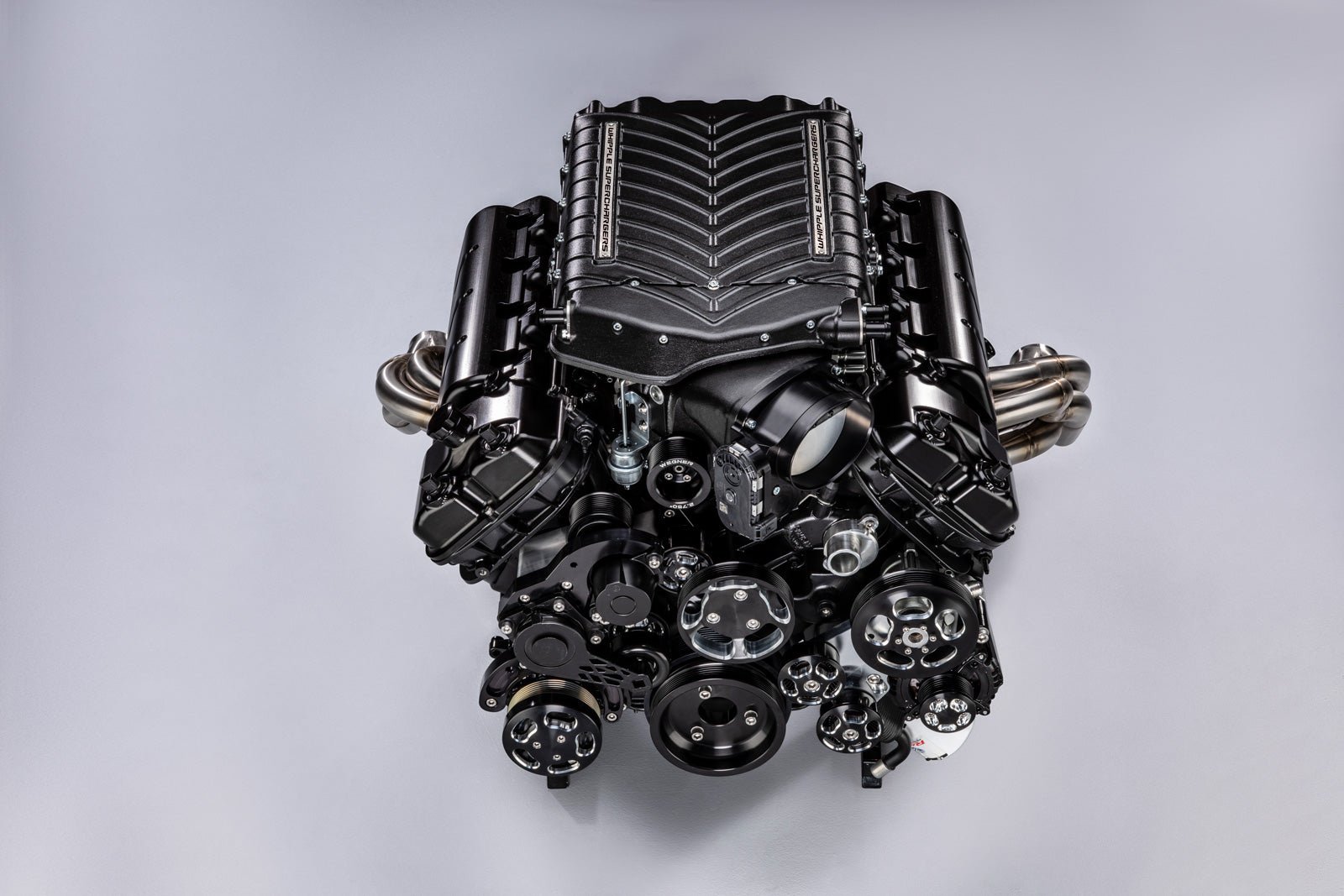

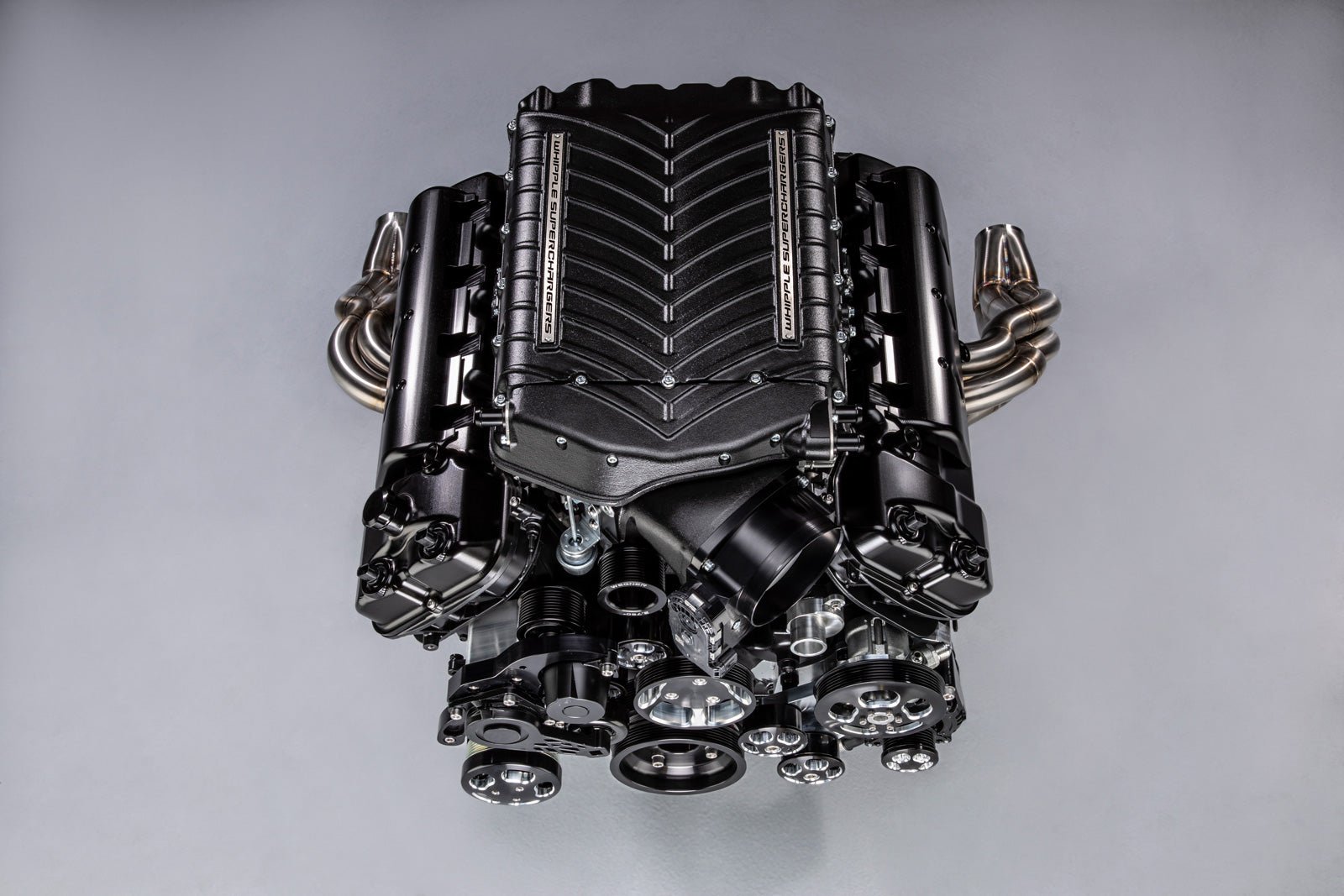

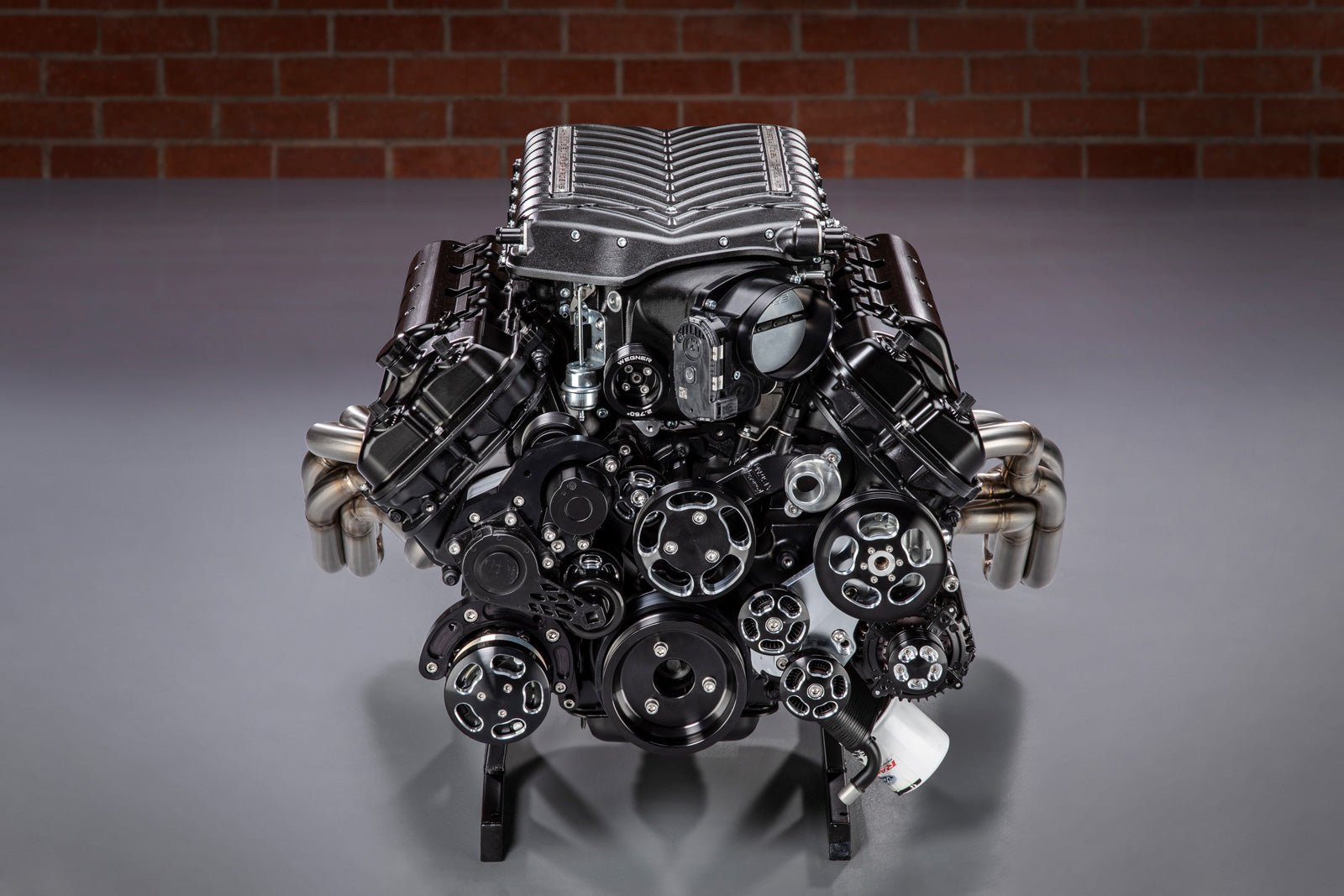

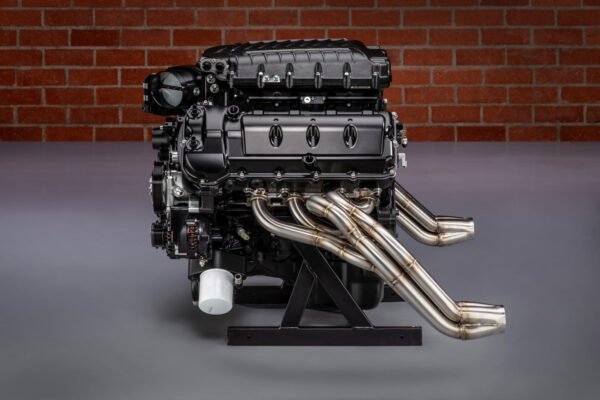

NRE Supercharged Gen 3 5.0 Coyote — 1000 HP @ 7500 RPM | Whipple Gen 5 Supercharged | Fully Engineered Street/Track Monster

The NRE Supercharged Gen 3 5.0 Coyote is a masterpiece of modern American V8 engineering—delivering 1000 horsepower at 7500 RPM and 808 ft-lbs of torque at 5500 RPM on standard 91-octane fuel. Designed to rev cleanly to 8000 RPM, this engine achieves nearly 3 horsepower per cubic inch, a feat rarely found in a pump-gas package that retains full street reliability. Nelson Racing Engines spent countless hours refining variable cam timing, giving this Coyote an extremely broad torque curve with lightning-fast throttle response and valvetrain stability that rivals OEM durability.

Perfect for early Mustangs, Broncos, Shelby Cobra replicas, pro-touring builds, and any high-end restomod needing cutting-edge performance with clean manners and long-term reliability.

Raw Power, Extreme RPM Capability & OEM-Level Driveability

This engine is engineered to feel as refined as it is violent. NRE’s custom variable cam timing calibration unlocks a torque band that pulls from down low and never quits, while the Gen 3 Coyote head design supports high RPM breathing with exceptional efficiency. The result: a supercharged package that revs freely, stays stable at high RPM, and provides a shockingly smooth idle for its power level.

Despite breaking the 1000 hp threshold, this Coyote maintains factory-like cold start behavior, impeccable drivability, and long-term valvetrain reliability—making it suitable for daily-driven restomods and high-performance street builds.

Engine Specifications

Short Block

• Block: Ford Motorsport aluminum

• Crankshaft: Forged Ford Motorsport

• Connecting Rods: Manley 4340 forged H-beams

• Pistons: Mahle forged, 9.5:1 compression, hard-anodized

Cylinder Heads & Valvetrain

• Heads: Gen 3 Coyote, 4-valve per cylinder

• Camshafts: NRE Stage 1 hydraulic cams

• Valve Train: Roller finger followers with fully functional VVT

Forced Induction

• Supercharger: Whipple Gen 5, 3.0-liter

• Intercooler: Integrated water-to-air cooling

Oil System

• Billet steel gerotor oil pump

• High-capacity 10-quart oil pan

Electronics, Fuel & Control

• Fuel Management: Life Racing F88 full-spec ECU, adaptive knock control, mil-spec wiring

• Fuel System: Direct injection + supplemental port injection

Exterior & Hardware

• Billet NRE machined valve covers

• Premium fasteners and OEM-level harness integration

Supercharger System & Airflow Efficiency

The Whipple Gen 5 3.0-liter supercharger is a top-tier twin-screw design delivering exceptional airflow, instant boost delivery, and industry-leading efficiency. Coupled with a built-in water-to-air intercooler, intake temperatures remain stable even under aggressive load or high RPM usage. This ensures the engine produces repeatable, consistent power—without the heat-soak issues common in lower-grade supercharger systems.

Application Versatility

This engine is built to slot into a wide variety of performance-oriented projects. From vintage Mustangs needing modern power to off-road Broncos, Cobra kit cars, resto-mods, drift builds, and even road course applications, the NRE Coyote integrates modern Ford engineering with extreme overbuilt performance.

Why Choose the NRE Supercharged Coyote?

• 1000 HP on 91 octane — no race gas required

• 808 ft-lbs of torque with a massive RPM spread

• Modern VVT + custom tuning = unmatched street manners

• Whipple Gen 5 twin-screw = instant boost, zero lag

• Built with premium forged internals

• Billet NRE aesthetics for show-quality presentation

• Works in a huge range of classic Ford platforms

This engine represents the perfect balance of modern drivability, extreme horsepower, factory-grade reliability, and unmistakable supercharged Coyote character.
